Aluminum Coil Coating Line & Two Coat Two Bake Lines
Why coat metal?
Aluminum coils or galvanized steel strip is painted and baked twice in coating lines to ensure high resistance and an appealing appearance. For exterior grade panels, it is painted with PVDF Kynar 500 fluorocarbon coating. For interior grade panels, it is painted with polyester coating.
Benefits
- Utilize high precision rolling coater with excellent quality of coating layer.
- It is suitable for coating with Acrylic, Polyester, Polyvinylidene and Fluoride (PVDF).
- Designed to fit the area of customer's factory.
- A fine coating layer meets international standard.
- Easy to operate and control, and provide online operation training.
- Coater consists of PU and Chromate coating rollers with advantages as
PU roller
Available for a full coat. Matted surface effect. Adapt to the wooden granite pattern effect. Coating thickness can be thin or thick. Minor impurities won’t easily cause surface defects.
Chromate roller
Applicable for thinner coils. The coated surface is high gloss and delicate. Coating thickness can be thicker. The roller is abrasion resistant and sustainable. Lower maintenance costs.

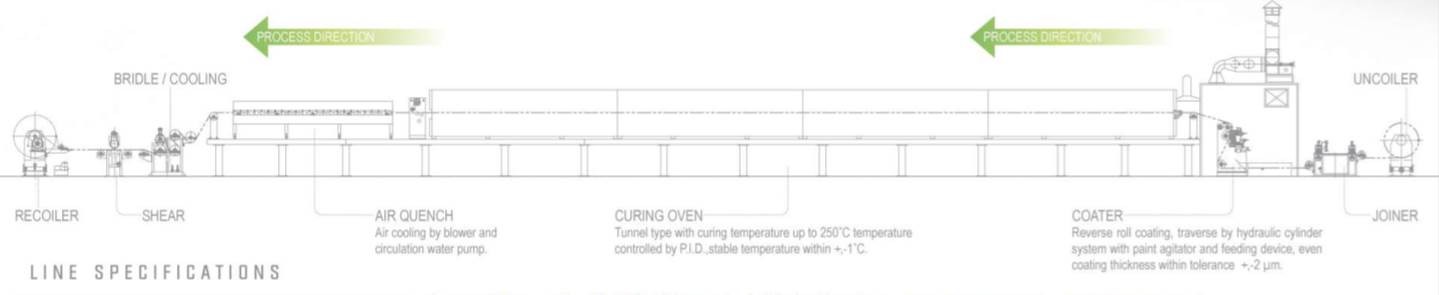

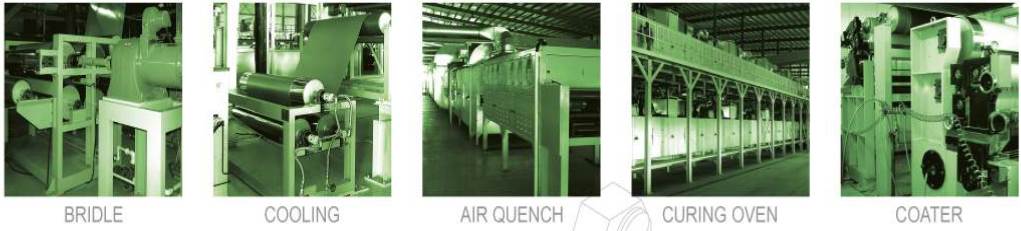

Aluminum Coil Coating Line Process Flow in Production Line

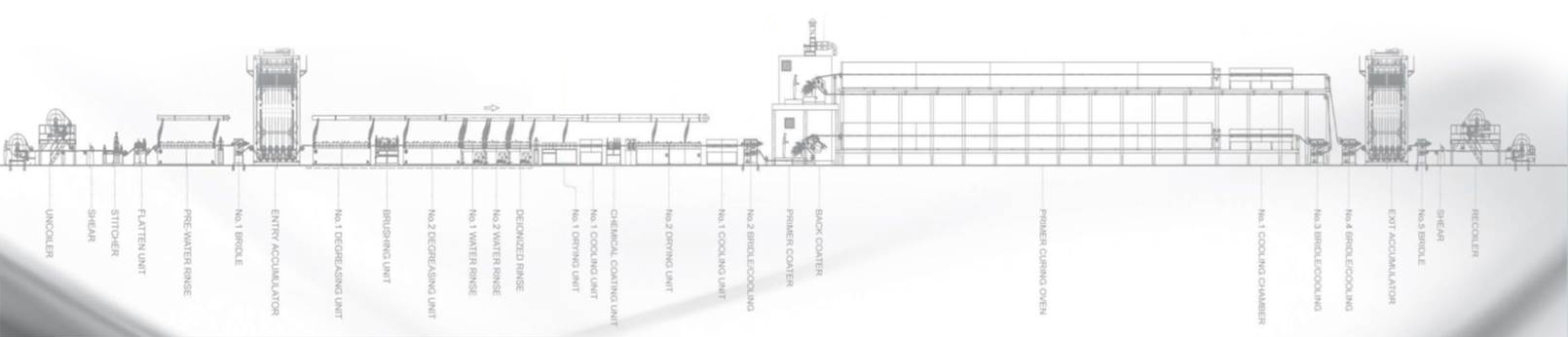

Two Coat Two Bake Lines Process Flow in Production Line
Aluminum Coil Coating Line Specification
| Item & Type | CCL-1600-AL25 | CCL-1600-AL40 | ||
| GAS | ELECTRICITY | GAS | ELECTRICITY | |
| Line Speed | 25M/min | 25M/min | 40M/min | 40M/min |
| ＊ Strip Width | 1,000～1,600 mm / 1,000～2,000 mm | 1,000～1,600 mm / 1,000～2,000 mm | 1,000～1,600 mm / 1,000～2,000 mm | 1,000～1,600 mm / 1,000～2,000 mm |
| Strip Thickness | 0.12 ～ 0.7 mm | 0.12 ～ 0.7 mm | 0.15 ～ 0.8 mm | 0.15 ～ 0.8 mm |
| Coil O/D | 1,200 mm | 1,200 mm | 1,200 mm / 1,300 mm | 1,200 mm / 1,300 mm |
| Coil I/D | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm |
| Coil Weight | 3,000 kgs / 5,000 kgs | 3,000 kgs / 5,000 kgs | 3,000 kgs / 5,000 kgs | 3,000 kgs / 5,000 kgs |
| Paint Type | Polyester, PVDF, SMP, Epoxy, Acrylics Urethanes | Polyester, PVDF, SMP, Epoxy, Acrylics Urethanes | Polyester, PVDF, SMP, Epoxy, Acrylics Urethanes | Polyester, PVDF, SMP, Epoxy, Acrylics Urethanes |
| Line Space Dimension | 52,000L x 8,000W x 5,500H mm | 52,000L x 8,000W x 5,500H mm | 60,000L x 8,000W x 5,500H mm | 60,000L x 8,000W x 5,500H mm |
| Line Weight | 42,000kgs (approx.) | 44,000kgs (approx.) | 48,000kgs (approx.) | 50,000kgs (approx.) |
| Line Power | 125HP / 60KW | 125HP / 800KW | 178HP / 60KW | 178HP / 1,280KW |
| Water Consumption (Soft Water) | 300 ~ 600 L/min for cooling tower recirculation used | 300 ~ 600 L/min for cooling tower recirculation used | 300 ~ 600 L/min for cooling tower recirculation used | 300 ~ 600 L/min for cooling tower recirculation used |
| Compressed Air Consumption | 0.8 ~ 1.5 M³/hr | 0.8 ~ 1.5 M³/hr | 0.8 ~ 1.5 M³/hr | 0.8 ~ 1.5 M³/hr |
- The above specification is for reference only.
- ALUMAX has the right to make any change.
Two Coat Two Bake Lines Specification
| Item & Type | CCL-1600-AL30 (2C2B) | CCL-1600-AL45 (2C2B) | CCL-1600-AL60 (2C2B) |
| Coating paints | Polyester, SMP, PVDF, Epoxy, Acrylics Urethanes | Polyester, SMP, PVDF, Epoxy, Acrylics Urethanes | Polyester, SMP, PVDF, Epoxy, Acrylics Urethanes |
| Production speed | 30 M/min.(Max.) | 45 M/min.(Max.) | 60 M/min.(Max.) |
| Oven Heating | NG / Electricity | NG / Electricity | NG / Electricity |
| Material | Aluminum Coil | Aluminum Coil | Aluminum Coil & Galvanized Steel |
| Product Thickness | 0.2-1.0 mm | 0.2-1.0 mm | 0.2-1.0 mm |
| Product Width | 1,000-1600 mm | 1,000-1600 mm | 1,000-1600 mm |
| Coil O/D | Ø1,400 mm | Ø1,500 mm | Ø1,800 mm |
| Coil I/D | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm | Ø405 mm，Ø508 mm |
| Coil Weight | 5,000 kgs(max.) | 7,000 Kgs(max.) | 10,000 Kgs(max.) |
| Compressed Air Consumption | 0.2~1.2 m³/min @ 0.7MPa Clean & Dry | 0.2~1.2 m³/min @ 0.7MPa Clean & Dry | 0.2~1.2 m³/min @ 0.7MPa Clean & Dry |
